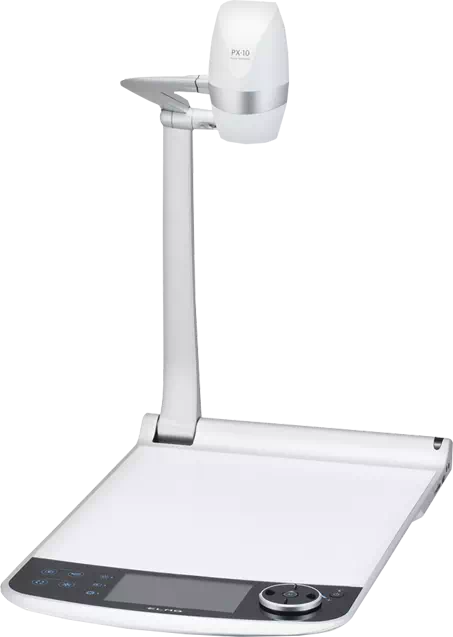

PX-10 Document Camera

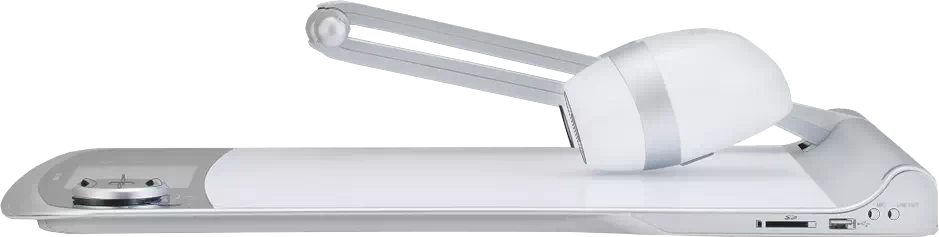

PX-10 part1 Visualisers

ELMO PX-10

Visualiser - ELMO PX-10 Document Camera
for better teaching and learning, enhances Students understanding, increases participation and knowledge retention, keeps the Students energized and so on..

Document Camera PX-10 With an unprecedented 288x zoom, captures in vibrant 1080P Full HD resolution and records video at 60fps that can be saved via SD card, USB flash device, or the camera’s internal memory. PX-10 comes with a variety of shooting modes including 4:3 and widescreen 16:9, with a capture area of up to A4 portrait and A3 landscape. The PX-10 also features an all-new 5” High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control, a zoom toggle wheel with autofocus, as well as a variety of output options (HDMI, VGA, and USB). The platform stage is magnetic and comes with a custom whiteboard surface that can be written on with dry erase markers to show lessons and annotate during demonstrations. PX-10 is the best document camera in India. It is easy to operate, simply enables you to place any item under the camera connect it to the projector for large image display. Such Document Camera can be easily placed anywhere occupying less space with compact design.

Document Camera Features

2K Full HD Image
specially crafted lens which captures 2K Full HD image quality that is comparable to 4K.
288x Zoom
With 12x optical, 12x digital zoom, and 2x sensor zoom, the PX-30 is capable of an incredible 288x zoom
Touch Navigation
5” High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control and a zoom toggle wheel with autofocus,
Multiple Outputs
HDMI, VGA, and USB output options for compatibility with a wide array of products.
Magnetic Baseplate
The PX-10's platform stage is magnetic and comes with a custom whiteboard surface that can be written on with dry erase markers to show lessons and annotate during demonstrations.
Widescreen Mode
The PX-10 comes with a variety of shooting modes including 4:3, widescreen 16:9, and a capture area of up to A4 portrait and A3 landscape

Visualiser PX-10 Specifications

Effective pixels 3,840 x 2,160 (16:9) 8.3 M; 3,520 x 2,640 (4:3) 9.3 M
Zoom 24x (Optical zoom 12x + Sensor zoom 2x) Digital zoom 12x
Total zoom 288x (※when output at 1080p)
Horizontal resolution 1,600TV lines(center)
Image Pick-Up Element 12M Sony
Shooting Araa 430 × 320mm (Aspect ratio 4:3)
Focus Range WIDE: 5cm~∞ TELE: 20cm~∞ (w/o close-up lens)
Focus Control AUTO: Zoom sync AF/ One-push AF
Operating buttons Power, AF, Brightness, Image rotation, Freeze,
Video recording, Still image recording, Settings, Select image
LCD touchscreen High image quality (800 x 480) 5" capacitive touchscreen
HDMI out 1,920 × 1,080 @60fps (4k high image quality)
1,280 × 720 @60fps (4k high image quality)
RGB out 1,920 × 1,080 @60fps 16:9; 1,280 × 720 @60fps 16:9
USB Port Type B(USB3.0): Video out; Type A(Power): Power supply (WHDI)
Type A(USB2.0): USB flash drive & power supply
USB out USB 3.0 compliant, UVC(video)compliant (M-JPEG/YUY2)
16:9; FHD(1,920 × 1,080 @60fps) 16:9; HD(1,280 × 720 @60fps) 16:9; UXGA(1,600 × 1,200 @30fps) 4:3;
XGA(1,024 × 768 @30fps) 4:3; VGA(640 × 480 @30fps) 4:3
Presentation Image rotation(90°)/ Freeze/Mask/Black & White
Image related functions White balance / Flicker correction / Brightness adjustment / Contrast adjustment /
Noise reduction / Contour correction / Color adjustment / Shading correction /
Pixel defect correction / High-quality resizing / Chromatic aberration correction
Input source HDMI:Type A x2 VGA:D-Sub ×1
For HDMI, the input signal should be either 1920 x 1080 @60fps or 1280 x 720 @60fps.
Record/ playback Recording media :SD card, USB flash drive, Built-in memory
Recording format:Video MP4; Still image JPEG; Image size: 2K@60,2K@30,1K@30,
Video recording: Normal / Time-lapse, Date/time stamps
Audio Input: External microphone / HDMI audio; Output:Line out /HDMI
External control RS-232C / USB / Remote control / Network
DIMENSIONS (W x D x H) 297mm x 482mm x 478mm (when setup)
297mm x 482mm x 133mm (when folded)
Weight 4.5kg
Power Consumption 21.6 W
Package content AC Adapter, Ac power cord, Remote Control, USB 3.0 Cable (1.5), DC Power Cable, Quick Guide,
Product Warranty, Whiteboard Sheet
