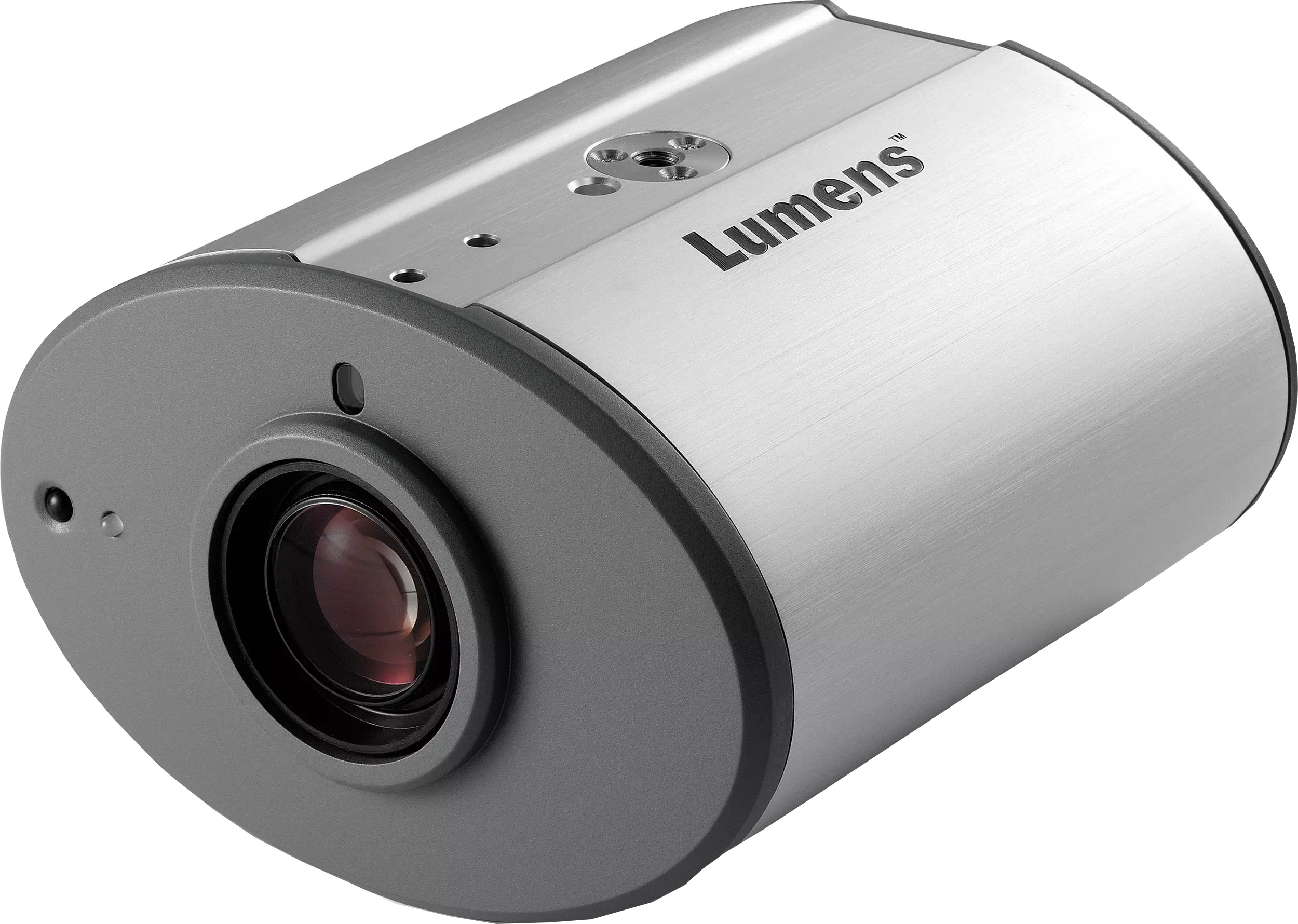

CL-510 Document Camera

DOCUMENT CAMERA Lumens CL-510


Ultra-compact, simple & stylish, can easily fit inside handbag Lumens CL-510 now from EAPL, India
connect CL-510 directly to the Projector or TV screen via HDMI/VGA/USB .
8x Optical Zoom and 13M Sensor provides Superb image quality and full motion video in 60fps.

Visualiser - Lumens CL-510 Document Camera
Help maintain your Students' interest with high quality Images. Enhances Students Understanding, Saves 95% Lab Activity Time and so on..

Document Camera is used to enlarge small images, content, or objects, which are generally invisible to the naked eyes. Lumens CL-510 delivers the smoothest true-to-life, high-quality image with no delay. Full HD document camera that presents the content to the audience in higher resolution. CL-510 Document Camera features 13M sensor provides incredible image quality, 8X optical Zoom enable to record lecture in classroom/conference hall with outstanding video quality, capturing true 4K at 30fps or full HD at 60fps, save it to the PC/Laptop via USB cable for future reference. CL-510 is easy to connect, operate and simply enables you to place any item under the camera to display them to the audience..

Lumens CL-510 Features

CL-510 give top quality 4K image at up to 30 fps.
The optional Connect Box gives you an HDMI and an RGB output.
8X optical Zoom with auto focus lens.
The most flexible document camera: Bend it, Twist it, Fold it.
Super Speed USB 3.0 port allows for viewing of full HD video True 4K
Easy access to navigation buttons, such as; image roation, freeze frame etc.
13M sensor provides incredible superb image quality
Weighing only 1.04lbs, it is completely portable and easy to transport

Visualiser Lumens CL-510 Specifications

LENS f=2.0 FOV 79° (Diagonal)
FRAME RATE Max. 60 fps (@high frame mode 1080p) *with HighRes mode: 20fps
PIXELS 8 Megapixel
ZOOM 8 x (MAX)
EFFECTIVE PIXELS 13M (4160 x 3120)
IMAGE PICK-UP DEVICE 1/3.1" 13M pixels
SHOOTING AREA 374mm × 281mm (Hight:286mm) aspect4:3
FOCUS Range 100mm – ∞
FOCUS CONTROL One-Push AF
ZOOM BUTTON (W/T) Provided
WHITE BALANCE Provided
BRIGHTNESS Control Provided
PAUSE Provided
AF BUTTON Provided
IMAGE ROTATION 0°/180°
LIGHTING (LED) Provided
FLICKER CORRECTION 50Hz/ 60Hz, Via USB/Software *on Expansion box
USB output USB3.0 UVC (M-JPEG, YUY2), 13M (4160x3120) @20fps 4:3,
4K (8M) (3840x2160) @30fps 16:9, 3M (2048x1536) @30fps 4:3,
1080P (1920x1080) @60fps/30fps 16:9, 720P (1280x720) @60fps/30fps 16:9,
XGA+ (1280x960) @30fps 4:3, VGA (640x480) @30fps 4:3
HDMI output 1080P/720P *thru Expansion box
VGA Output UXGA (1600 x 1200), XGA (1024 x 768) *thru Expansion box
HDMI connection Yes Type A ( *on Expansion box)
USB Connection Yes USB 3.0 Micro B
VGA Connection YesDsub 15p connector ( *on Expansion box)
DIMENSIONS (W x D x H) 73.2mm x 294.3mm x 298mm (when setup)
73.2mm x 244mm x 18mm (when folded)
WEIGHT 470g very light
POWER SOURCE DC jack 5V ( *on Expansion box)
POWER CONSUMPTION 3.2W
PACKAGE CONTENT AC Adapter, USB Cable(micro-standerd B), DC Power Cable, Quick Guide, Product Warranty, Expansion Box(optional)

Do you want to see live demo of Visualiser Lumens CL-510?
