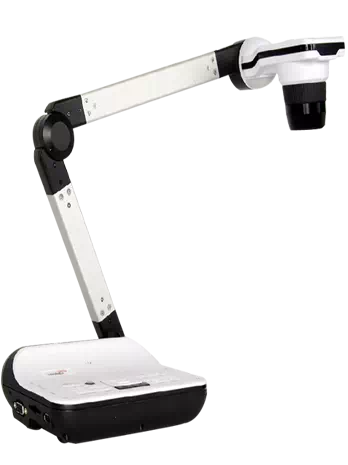

DC2i Document Camera

HD DOCUMENT CAMERA


Powerful Document Camera Visualizer from EAPL, India
Optimized for any size presentation environment.
Speed, Reliabilty and Simplicity .
Cost-Effective and Compact Size document camera for projector.

Visualiser - DC2i Document Camera
for better teaching and learning, enhances Students understanding, increases participation and knowledge retention, keeps the Students energized and so on..

Document Camera is an equipment, used to enlarge small images, which are invisible to the naked eyes, to high resolution images and present them to the audience. EAPL-DC2i Document Camera features 8M sensor provides incredible image quality, 17X optical Zoom enable to record lecture in classroom/conference hall with outstanding video quality, save it to the PC/Laptop via USB cable for future reference and also very useful for video-conferencing. DC2i is the best document camera in India. It is easy to operate, simply enables you to place any item under the camera connect it to the projector for large image display. Such Document Camera can be easily placed anywhere occupying less space with compact design.

Document Camera Features

Full HD 1080P video output
10X(17X) optical Zoom with auto focus lens
Presentation aids: various image effects/ remote controt
"Pose-able" design enables easy operation
8M sensor provides incredible image quality
HDMI/VGA/USB/SD Slot
Active VGA and HDMI pass through PC
17X optical zoom & 32X Digital/Mechanical Zoom

Visualiser DC2i Specifications

LENS 34-340mm / F2.8-3.5
SENSOR 1/3.2" CMOS Colour sensor
PIXELS 8 Megapixel
ZOOM 17X optical zoom & 32X Digital/Mechanical Zoom
LENS ROTATION Free lens rotation manually at any degree from 0 to 90 deg to conform to object orientation
ILLUMINATION SYSTEM Upper:LED Illumination System (3-stage brightness control)
Working Surface A3 (420mmx297mm)
FOCUS Auto
OUTPUT RESOLUTION Still Image Resolution: 8MP / 5MP / 2MP, HDMI Output Resolution: 1920x1080; 1280x720, RGB Output Resolution: 1600x1200; 1024x768
WHITE BALANCE Auto
BRIGHTNESS ±7 Compensation
CAPTURE TYPE Single
IMAGE CONTROL/ROTATION Freeze / Highlight / Mask / Flip / PIP / Slideshow
IMAGE EFFECT Text / Graphics / B&W / Negative / Sketch
REMOTE CONTROL Yes(IR Remote Control)
MECHANICAL ARM Yes
PC CAMERA Yes
RGB Output RGB Input
HDMI OUTPUT Yes(19-pin HDMI 1.3 x1)
USB Yes(USB2.0, Type B x1)
DC 5V INPUT Yes(Power Jack x1)
EXTERNAL STORAGE SDHC Card Slot: Yes(support up to 32GB SDHC cards)
POWER SOURCE DC 5V, 100-240V, 50-60Hz
POWER CONSUMPTION TBD
PACKAGE CONTENT AC/DC Adapter x1,15-pin D-sub Cable x1(VGA Cable),USB Cable x1,HDMI Cable x1, Battery x2,Remote Control x1,Microscope Adapter x1,Anti-glare Sheet x1, Quick Guide x1,CD x1
